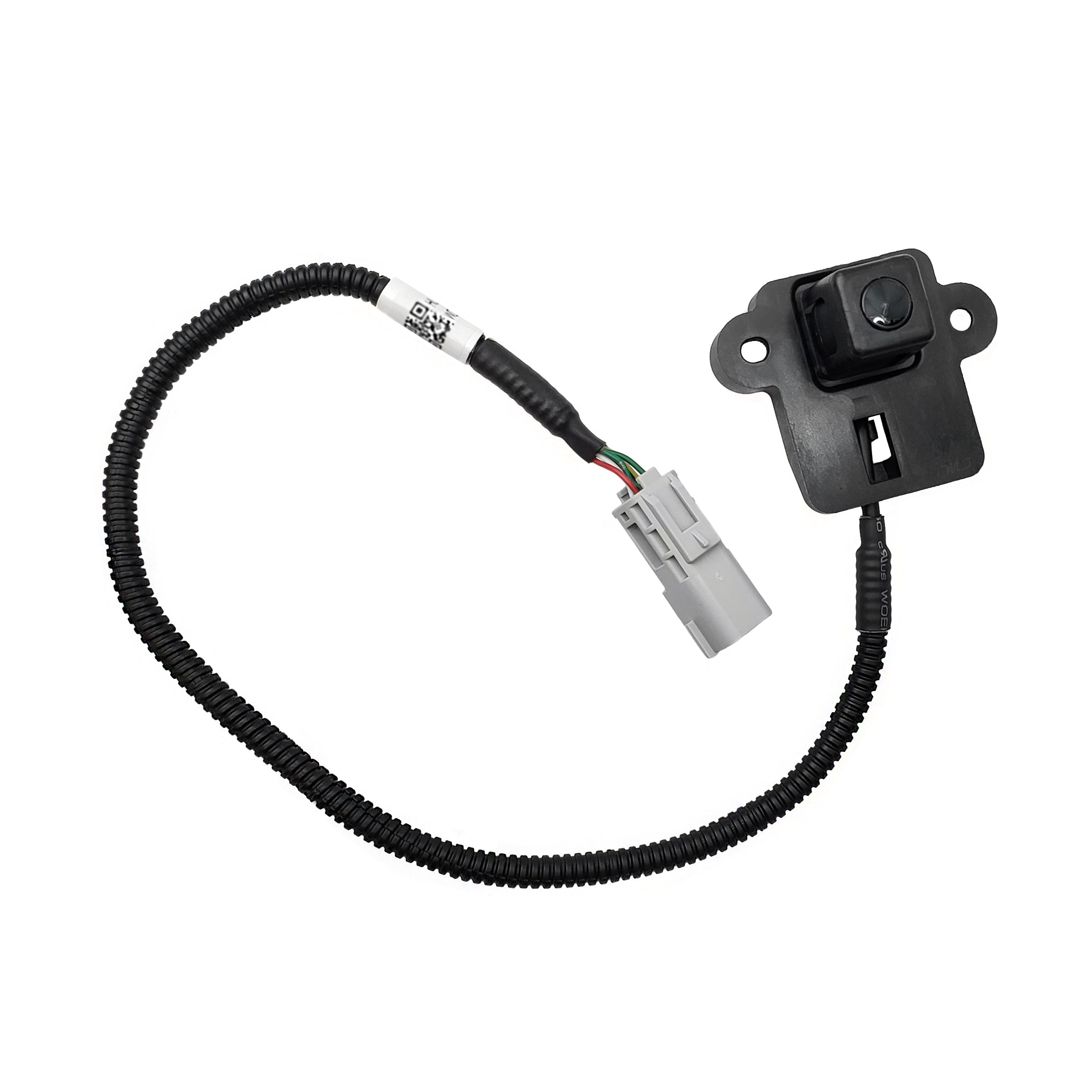

Master Tailgaters Replacement Chevrolet Avalanche / Cadillac Escalade EXT Backup Camera (2009-2013) OE Part # 20985078, 25866558

Replaces Model Number: 20985078, 25866558

For use with: Chevrolet Avalanche / Cadillac Escalade EXT (Years 2009-2013)

This is an aftermarket backup camera, not OEM. This camera will plug into your existing wire harness. If your vehicle currently does NOT have a backup camera system, this camera will not work. Double Check your part number prior to ordering.

STEP ONE: CALL
Before ordering this item:
First, you need to call the Parts Department of your local dealer to find out your exact Part Number.

STEP TWO: CHECK
Double check your Part Number with our part number to confirm.

• Oftentimes, people buy the wrong camera because they only match the model/year of their car.
• To avoid this, you just need to compare your part number to this one and make sure they match!

STEP THREE: PURCHASE
Once you complete steps ONE and TWO, and confirmed a match, you can purchase this camera without having to worry about whether or not if it will work for your vehicle!

Camera Specs:

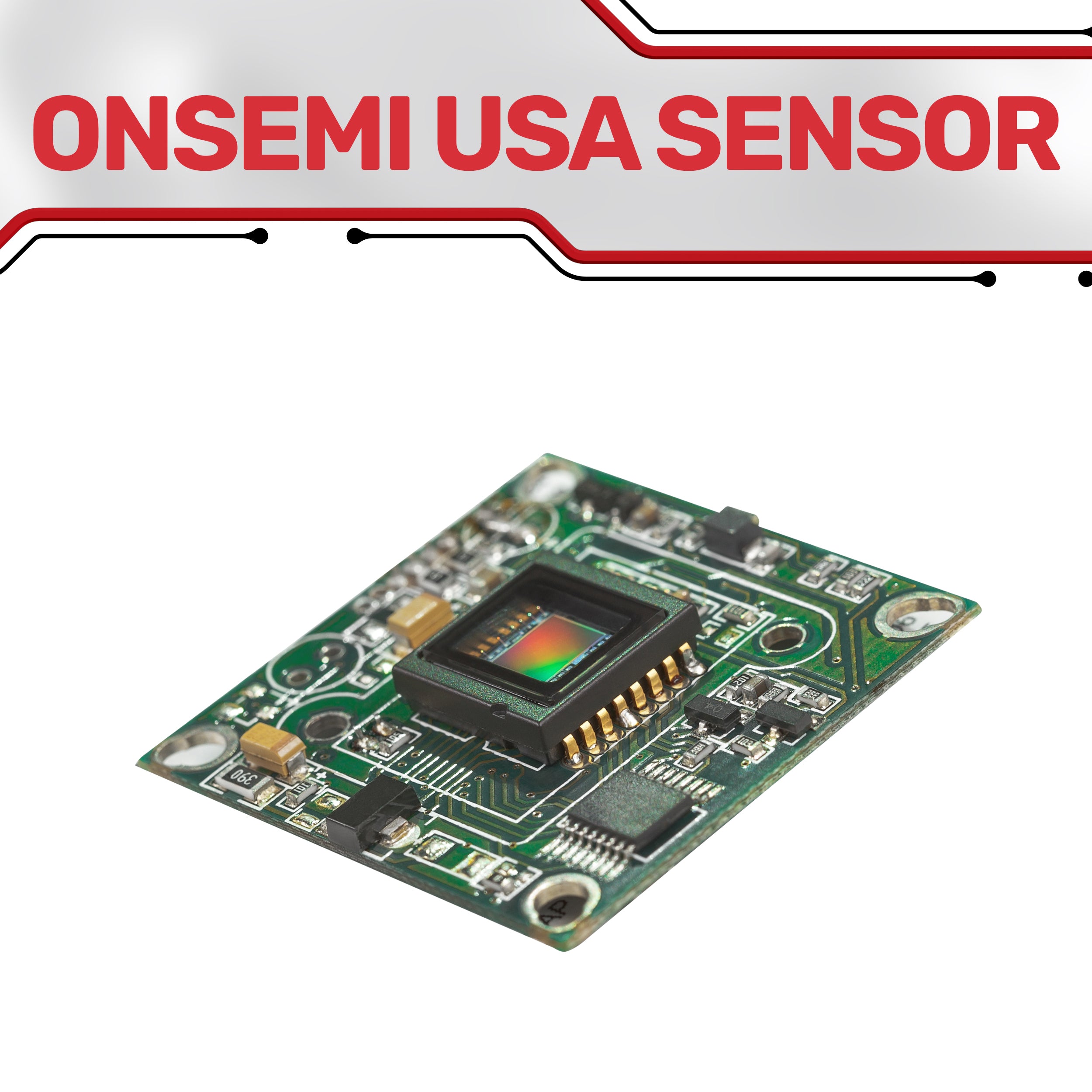

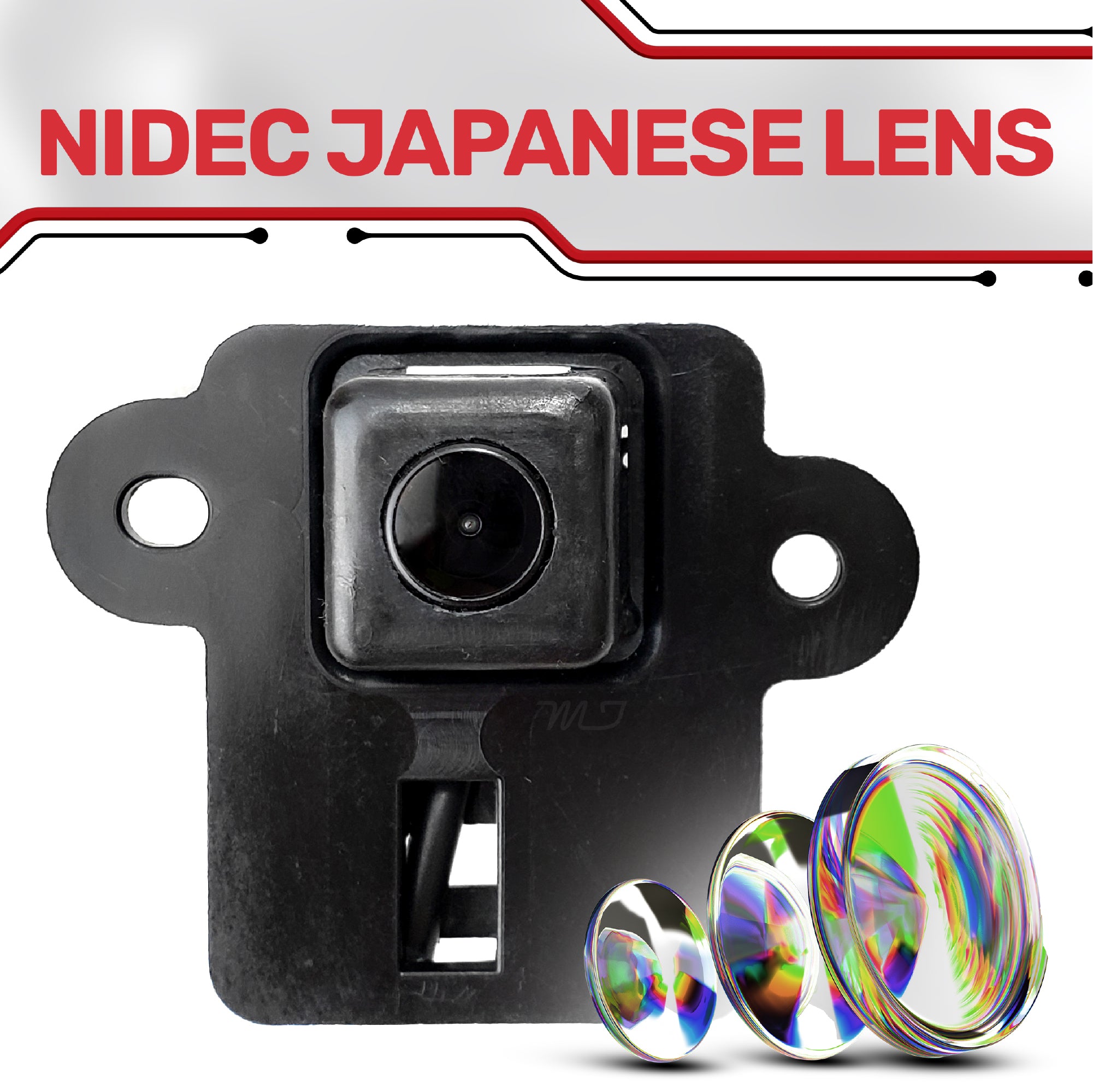

• Sensor: ¼” On-Semi (USA) CMOS Active Pixel Array, Lens: Nidec (Japan) (Glass + Plastic)
• Minimum Illumination : .1 Lux light sensitivity
• Signal System : NTSC/PAL
• Effective Pixel : 728 x 582
• Electronic Shutter : 1/50 to 1/100,000 seconds
• Resolution : 600 TV lines
• Angle : 170 Degrees
• Waterproof Rate : IP68
• Power : DC 6v-12v
• Video Cable: 20 inches

**ATTENTION: Before purchasing, make sure to call your local dealer to verify that your part number is an EXACT MATCH to this part number*
[Replaces]: OE Part # 20985078, 25866558
[Fits]: Chevrolet Avalanche / Cadillac Escalade EXT Years 2009-2013
[Resolution]: 600 TV Lines

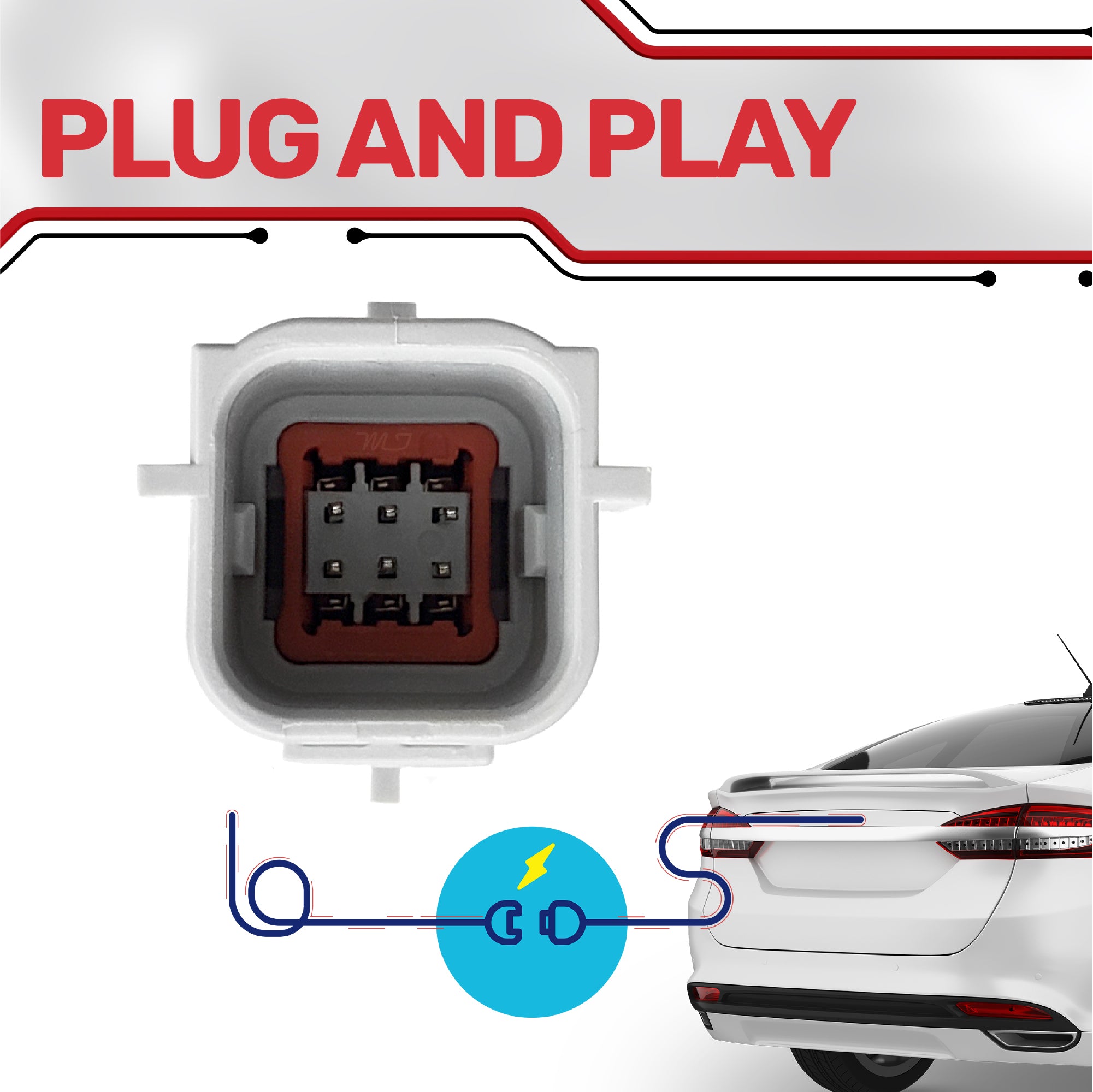

[Plug and Play]: Plugs into Existing OEM Video Harness
